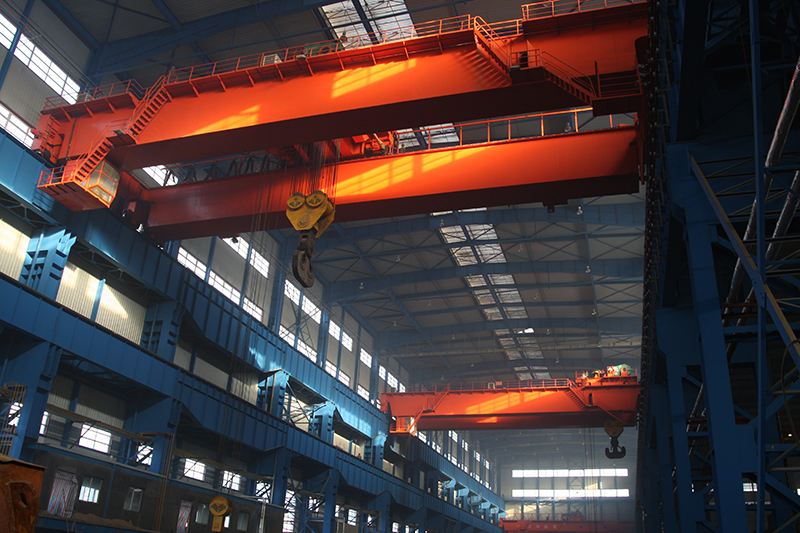

Overhead crane is among the most crucial machines in workstations/workshops and factories, because it assists in achieving mechanized production and reducing the heavy physical labor. This crane is used in many industries to lift and transport heavy materials, and it has either a single girder or a double girder type. The design of an overhead crane system is the major factor in its complexity and determining its cost. The double girder overhead crane( grúa viajera bipuente ) consists of two bridge beams and is used for heavy-duty applications.
Double Girder Overhead Crane Applications And Components
The double girder overhead crane has gained popularity over the past few decades in the lifting equipment industry. This type of overhead crane has lots of types like the electric and electromagnetic models. It’s a kind of crane that is designed to have double girders for lifting and transferring materials in the factories, workstations, garages and even in the maintenance workshops. A double girder crane can be top or under running with the top running providing the greatest hook height. Bridge cranes(grúas viajeras) are configured depending on the work in your application.
Main Components of Double Girder Crane
- The girder frame. This consist of parts like the main girder, trolley traveling track, and the cab.
- Lifting trolley. This device is equipped with both lifting and traveling mechanisms.
- Electric control system.
- Crane operating device.
Types of Double Girder Overhead Crane
(1). NLH Double girder overhead crane
This is a well-designed crane, lightweight and meets strength, stability, and rigidity of the requirements. And it’s easy to operate and adopts high-quality accessories that ensure that operations run with ease and reduces the maintenance work. Its parameters include:-
- Lifting Capacity: 3.2-80t
- Span length: 10.5Mm-31.5m
- Lifting height: 6m-8m
- Lifting speed: 0.5/3.4-0.8/5m/min
- Crane Traveling Speed: 3-30m/min
- Working Class: A5
(2). YZ Casting double girder overhead crane
This crane is used for lifting and transferring liquid steel ladle. And it’s suitable for dustiness, high temperature and busy transporting occasions. Its parameters include:-
- Lifting capacity: 5-320t
- Lifting height: 6-18m
- Span length: 10.5-31.5m
- Working Class: A6-A8
- Working temperature: -10 degrees to 55 degrees
(3). QD double girder overhead crane
This crane works with its lifting mechanism trolley that has a hook for lifting items. It’s normally controlled and operated in a cab and can be customized to meet your specifications. Mostly, you will find it used in mines, railway building sites, ports, and steel chemical factories. Its features include:-
- Lifting Capacity: 5-450t
- Span length: 10.5-31.5m
- Lifting height: 6-18m
- Lifting speed: 2.1-12.5m/min
- Crane traveling speed: 42-90m/min
- Working class: A5-A6
(4). QZ Grab double girder overhead crane.
The crane has an application in factories, power plant, workstations and in the goods yard. It’s designed to lift bulk goods. Its features include:-
- Lifting Capacity: 5-20t
- Span length: 10.5-31.5m
- Lifting height: 6-18m
- Lifting speed: 39-45m/min
- Crane traveling speed: 42-112m/min
- Working class: A6
(5). QC Electromagnetic double girder overhead crane.
This crane has a very powerful magnetic field force and is commonly used in steel and iron scrap recycling sector. In most cases, it collects and transports items like the iron wires, iron nails and steel plates at ease. It fits both indoor and outdoor occasions like the metallurgy factories. Its features include:-
- Lifting Capacity: 5-50t
- Span length: 10.5-31.5m
- Lifting height: 6-18m
- Lifting speed: 39-45m/min
- Crane traveling speed: 42-112m/min
- Working class: A6 or A7
Overhead cranes have many diffrent types for various work site, if you want to get more information, maybe you can visit this website: https://aicrane.com.mx/
Benefits of A Double Girder Crane
(1). Great maximum capacity and span
(2). High stability and rigidity
(3). It’s cost-effective
(4). It has extra hook height
(5). High efficiency and performance
(6). It’s ideal for lifting heavy items and has special features that can be customized.
Factors to Consider When Choosing The Right Crane to Buy
- Background of the supplier- Check their records and reviews from their previous clients to understand their credibility.
- The company’s certification and manufacturing practices- Ensure it’s ISO certified
- The weight lifting capacity of the crane
- Size, that is, both height and base area
- The movement mechanism of that crane
When It Comes to Installation, Consider Things Like:
- Safety
- Durability
- Cost/investment
- Maintainance
- Operation cycle.
Additionally, ensure that you do routine inspections( inspecciones de rutina ) to ensure the safety of the operators. Some of the things you can do is testing the crane movement.
