When it comes to crushing equipment, jaw crushers and cone crushers are two commonly used options in various industries. Both types of crushers have their own unique characteristics and advantages, making them suitable for different applications. This article aims to unveil the distinctions between jaw crushers and cone crushers, providing insights into their differences in design, operating principles, crushing capabilities, and more.
1. Design and Structure
Jaw Crusher Machine
Jaw crushers are primarily designed for primary crushing applications and feature a rectangular or square-shaped opening at the top called the feed opening. The movable jaw exerts force on the rock by pressing it against the stationary jaw. This crushing action creates compression, resulting in the breaking down of larger rocks into smaller particles.

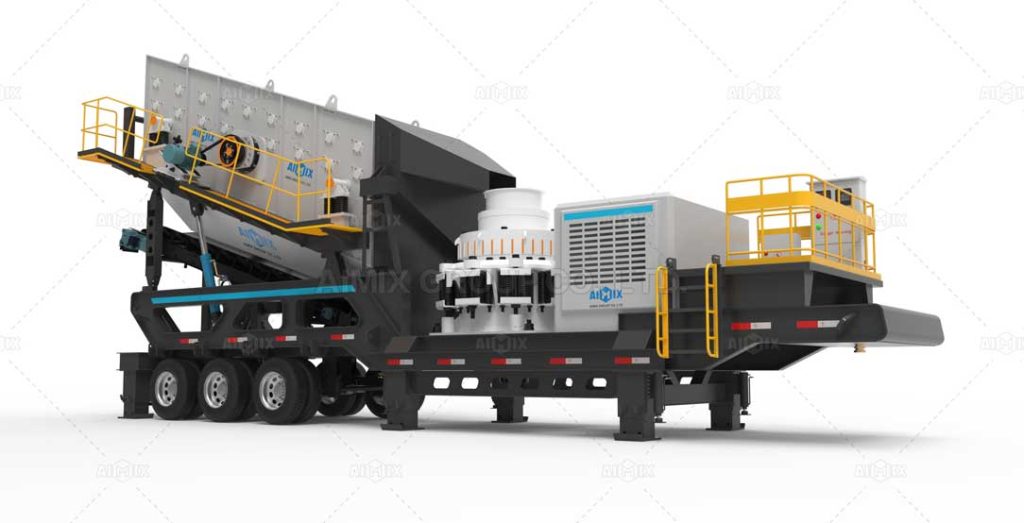

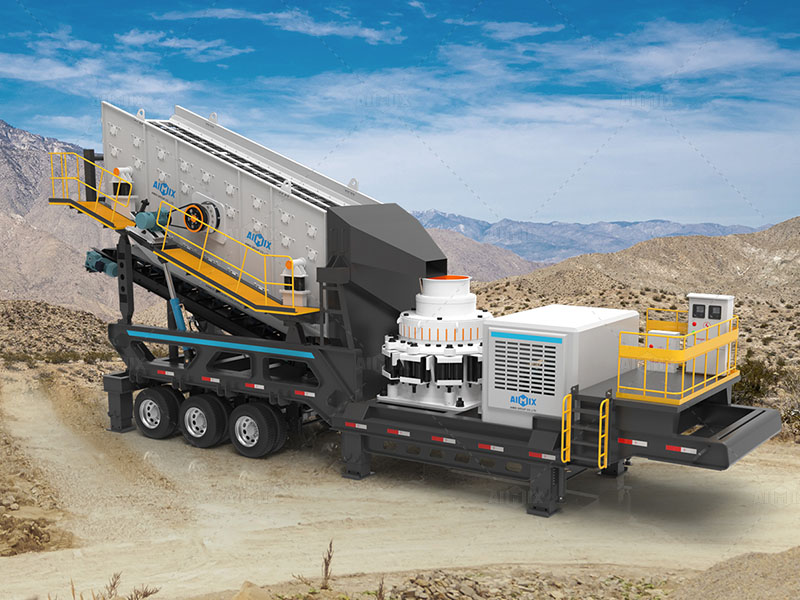

Cone Crusher Equipment
Unlike jaw crushers, cone crushers consist of a rotating mantle within a concave bowl. As the mantle gyrates, it moves closer to the concave, crushing the materials against it. Cone crusher is typically used for secondary or tertiary crushing stages, as the crusher cone for sale is capable of producing finer and more uniform-sized aggregates.
2. Operating Principle
Operation Guidance for Jaw Crushers
Jaw crushers operate based on a simple principle: the rock is fed into the crushing chamber between the fixed jaw and the movable jaw. As the jaws move back and forth, the rock is crushed by applying pressure. This mechanical pressure breaks the rock into smaller pieces. This is the complete jaw crusher working principle. If you hope to get more information about jaw crusher, please contact Aimix Group.
Operation Guidance for Cone Crushers
Cone crushers work on the principle of compression crushing. The rock enters the crushing chamber through the feeding hopper and is squeezed between the mantle and concave. The squeezing action creates a reduction in size, resulting in the production of finer particles.
3. Crushing Capabilities
Jaw Crushers
Jaw crushers are known for their excellent crushing capabilities, particularly when dealing with hard and abrasive materials. They are ideal for primary crushing tasks, such as processing quarried stone, river gravel, and demolition waste. Jaw crushers excel at producing uniform-shaped aggregates with high efficiency. Aimix is able to provide high-quality and affordable machines as one of the most professional jaw crusher manufacturers.
Cone Crushers
Cone crushers are highly versatile and suitable for various crushing applications. They are often used in the mining and aggregate industries to produce a wide range of final products. Cone crushers can effectively handle materials with different hardness levels, making them suitable for both secondary and tertiary crushing stages.
4. Particle Shape and Size

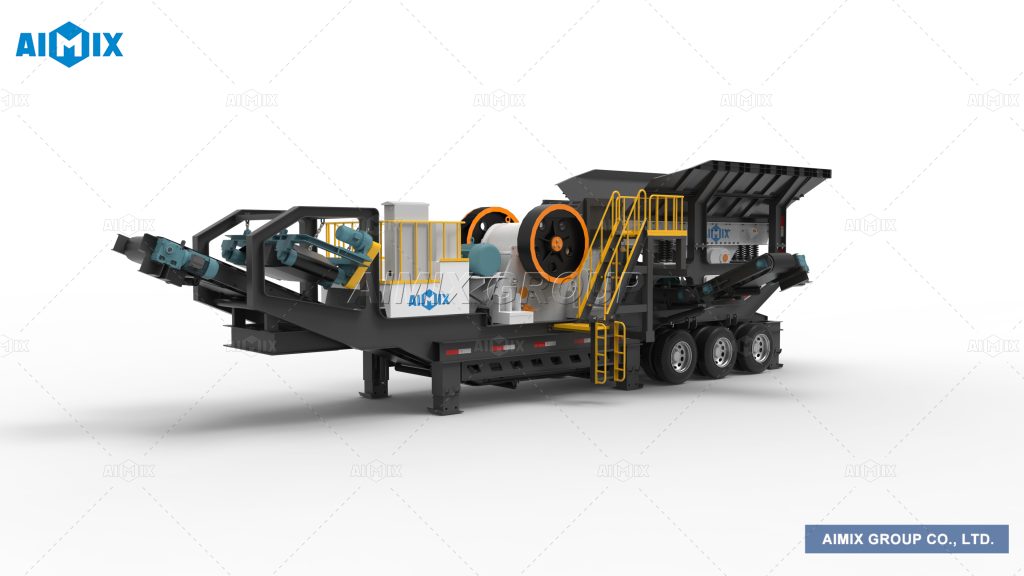

Jaw Crusher Plant
Jaw crushers tend to produce more elongated and flaky particles due to the nature of the crushing mechanism. However, they are capable of producing a wide range of particle sizes, depending on the CSS (closed-side setting) adjustment.

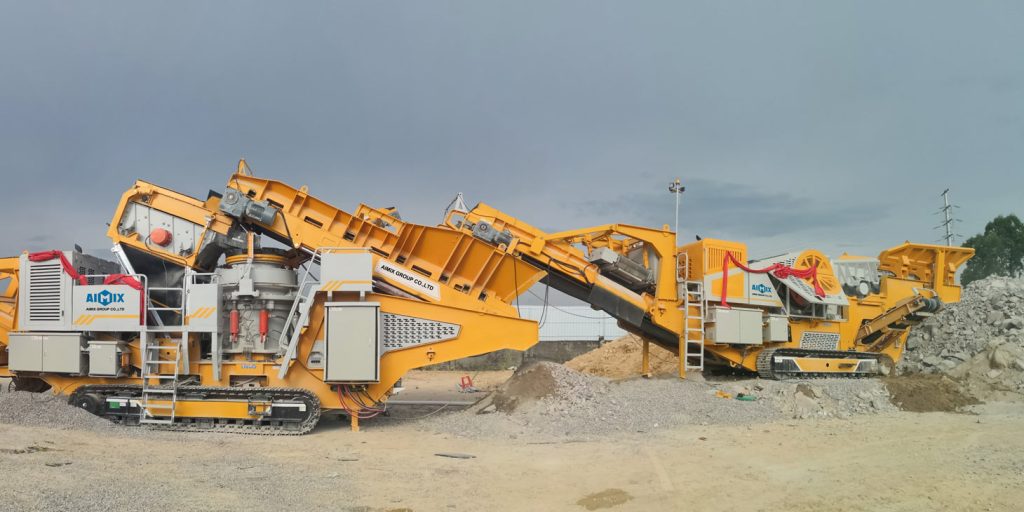

Cone Crusher Plant
Cone crushers are renowned for their ability to produce well-shaped and cubical particles. These crushers are preferred when the goal is to obtain precise and consistent particle shapes. The CSS adjustment plays a crucial role in controlling the final product size. Aimix is able to customize the cone crusher based on the raw material size and your or your customer’s expected final product size, and click here to customize one for you: aimixcrusherplant.com/.
5. Maintenance and Operational Costs
Jaw Crushers
Jaw crushers generally have lower maintenance costs compared to cone crushers. Their simpler design and fewer moving parts contribute to reduced maintenance requirements. However, jaw liners may need to be replaced regularly, especially when handling abrasive materials.
Cone Crushers
Cone crushers typically have higher operational and maintenance costs due to their more complex structure and additional components. Regular maintenance of cone crushers includes inspecting the liners, checking the hydraulic system, and ensuring proper lubrication.
Jaw crushers and cone crushers are both valuable crushing solutions, each with its own distinct characteristics and applications. Jaw crushers excel in primary crushing tasks and offer excellent efficiency, while cone crushers shine in secondary and tertiary crushing stages, providing finer particle sizes and precise shaping capabilities. Understanding the differences between these two types of crushers enables industry professionals to make informed decisions when selecting the most suitable equipment for their specific needs.
